DTC-PI400REV-A, Digital Torque Wrench, Angle, 40 - 400 lbf.in, 3/8"

Zoom

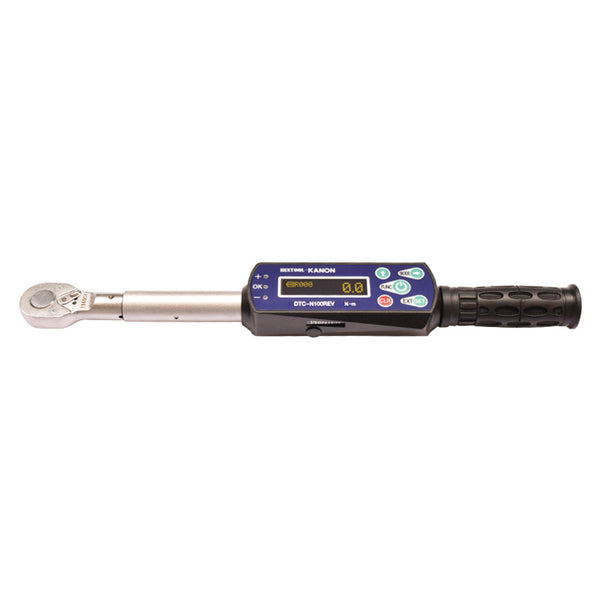

May not be actual product image.

DTC-PI400REV-A, Digital Torque Wrench, Angle, 40 - 400 lbf.in, 3/8"

Write a review

$1,161.00

Accurancy: ±1% of indicated value +1 increment, over full range. OLED display Three Measuring mode --- Peak hold, Peak to Peak, Tracking CW / CCW changeover, provided with CW / CCW status display. Auto power-off --- Approx. 30 minutes. Tolerance...View more

Select Option:

without Bluetooth

with Bluetooth

Due to internal system improvements,
we can not accept all orders from 4/25 (Thu) - 5/31 (Fri).
Contact: info@mahoservice.com

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: DTC-PI400REV-A [US]

Accurancy: ±1% of indicated value +1 increment, over full range.
OLED display
Three Measuring mode --- Peak hold, Peak to Peak, Tracking
CW / CCW changeover, provided with CW / CCW status display.
Auto power-off --- Approx. 30 minutes.
Tolerance setting --- 1 to 10%. Automatic judgement for pre-set target torque.
1000 Data Memory Capacity
Angle detection type (0- 540 degree)
Data transfer via Bluetooth®*(Option) or Cable**(Option)
*Bluetooth can be used in Japan, the U.S., Canada, the EU, Korea and Taiwan.
**Cable is not including.
Accessories --- 50QCK, Lithium-ion rechargeable battery and charger.

Please refer to the catalog for more specific dimensions and details.

Product Specifications
Name	DTC-PI400REV-A
Head Type	Ratchet (50QCK)
Square Drive Size	3/8" (9.53mm)
Range	40 lbf.in - 400 lbf.in
Increments	0.01 lbf.in
Overall Length	13.46" (342mm)

Select Option	without Bluetooth, with Bluetooth
