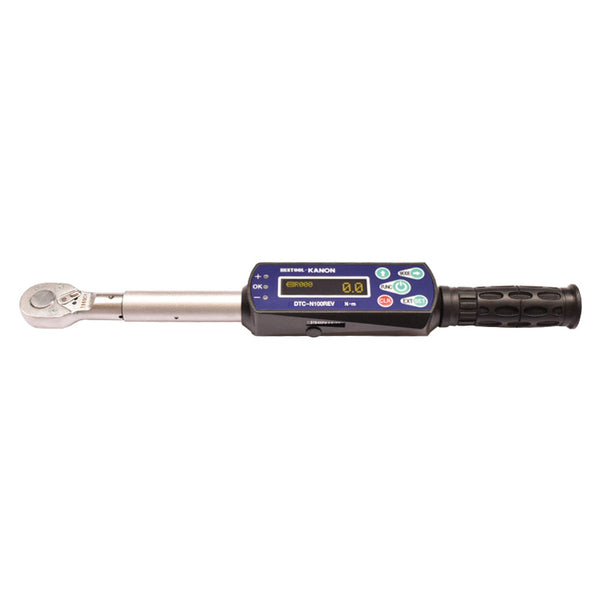

DTC-PF100REV-A, Digital Torque Wrench, Angle, 10 - 100 lfb.ft, 1/2"

Zoom

May not be actual product image.

DTC-PF100REV-A, Digital Torque Wrench, Angle, 10 - 100 lfb.ft, 1/2"

Write a review

$1,404.00

Accurancy: ±1% of indicated value +1 increment, over full range. OLED display Three Measuring mode --- Peak hold, Peak to Peak, Tracking CW / CCW changeover, provided with CW / CCW status display. Auto power-off --- Approx. 30 minutes. Tolerance...View more

Select Option:

without Bluetooth

with Bluetooth

Add to cart

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: DTC-PF100REV-A [US]

Accurancy: ±1% of indicated value +1 increment, over full range.
OLED display
Three Measuring mode --- Peak hold, Peak to Peak, Tracking
CW / CCW changeover, provided with CW / CCW status display.
Auto power-off --- Approx. 30 minutes.
Tolerance setting --- 1 to 10%. Automatic judgement for pre-set target torque.
1000 Data Memory Capacity
Angle detection type (0- 540 degree)
Data transfer via Bluetooth®*(Option) or Cable**(Option)
*Bluetooth can be used in Japan, the U.S., Canada, the EU, Korea and Taiwan.
**Cable is not including.
Accessories --- 200QCK, Lithium-ion rechargeable battery and charger.

Please refer to the catalog for more specific dimensions and details.

Product Specifications
Name	DTC-PF100REV-A
Head Type	Ratchet (200QCK)
Square Drive Size	1/2" (12.7mm)
Range	10 lbf.ft - 100 lbf.ft
Increments	0.1 lbf.ft
Overall Length	15.90" (404mm)

Select Option	without Bluetooth, with Bluetooth

DTC-PF100REV-A, Digital Torque Wrench, Angle, 10 - 100 lfb.ft, 1/2"

Related Products

DTC-N10REV-A, Digital Torque Wrench, Angle, 1 - 10 N.m, 1/4"

DTC-N50REV-A, Digital Torque Wrench, Angle, 5 - 50 N.m, 3/8"

DTC-N100REV-A, Digital Torque Wrench, Angle, 10 - 100 N.m, 1/2"

DTC-N200REV-A, Digital Torque Wrench, Angle, 20 - 200 N.m, 1/2"

DTC-N300REV-A, Digital Torque Wrench, Angle, 30 - 300 N.m, 3/4"

DTC-N500REV-A, Digital Torque Wrench, Angle, 50 - 500 N.m, 3/4"

DTC-N1000REV-A, Digital Torque Wrench, Angle, 100 - 1000 N.m, 1"

DTC-100REV-A, Digital Torque Wrench, Angle, 10 - 100 Kgf.cm, 1/4"

DTC-500REV-A, Digital Torque Wrench, Angle, 50 - 500 Kgf.cm, 3/8"

DTC-1000REV-A, Digital Torque Wrench, Angle, 100 - 1000 Kgf.cm, 1/2"

DTC-2000REV-A, Digital Torque Wrench, Angle, 200 - 2000 Kgf.cm, 1/2"

DTC-3000REV-A, Digital Torque Wrench, Angle, 3 - 30 Kgf.m, 3/4"

DTC-5000REV-A, Digital Torque Wrench, Angle, 5 - 50 Kgf.m, 3/4"
